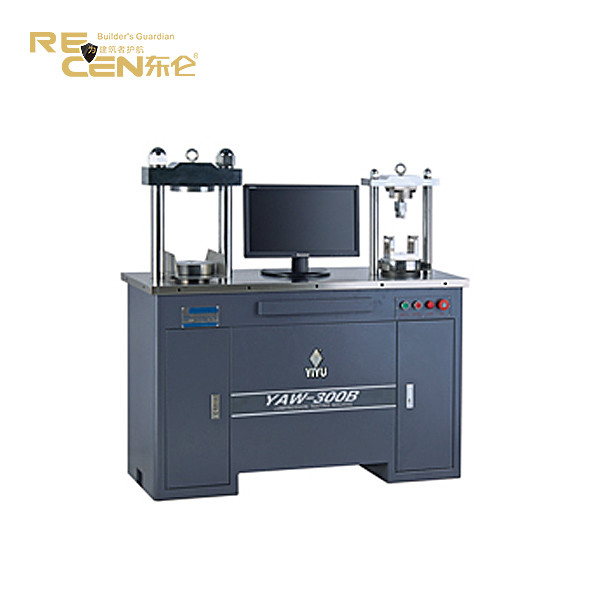

380V Construction Material Testing Equipment Cement Compressive Testing Machine

Name: 380V Construction Material Testing Equipment Cement Compressive Testing Machine
Brand: RECEN
Price: 1 USD

Brand Name : RECEN

Model Number : RC-TM-005

Certification : CE, ISO9001, SGS

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 5-10 days

Packaging Details : Plywood Box

Maximum test ability : 300kN

Constant loading rate : 0.3kN / s-9.9 kN /

Weight : 400kg

Power supply : 380V（±10%）

Product size : 970mm×450mm×1350mm

Motor power : interactive 750W

Price : Negotiable

Contact Now

Testing Machine Cement Compressive Testing Machine Tester Control Cement Pressure

Product Profile

RC-TM-005 type constant load cement bending and compression testing machine is a new generation of pressure testing machine with cement bending and compression. Adopt high-precision digital micro-quantity valve, with force closed-loop control function, can achieve equal load rate loading or equal stress rate loading, high control accuracy and good reliability. It is especially suitable for test sites that need to work continuously for a long time. This testing machine is a necessary testing instrument for building materials, construction, quality supervision, measurement and testing, scientific research institutions and other units. The product conforms to the specific provisions of the pressure testing machine in the GB / T50081-2002 (ISO679: 1989orEN196 / 1) standard.

Function characters

1. Maximum test force 300kN

2. Constant loading rate 0.3kN / s-9.9 kN / s

3. The distance between the upper and lower pressure plates is 180mm

4. Diameter of bearing plate φ150mm

5. Maximum piston stroke 50mm

6. Indication relative error (accuracy) ± 1.0%

7. Hydraulic motor power AC 750W

8. Relative error of indication repeatability 1.0%

9. Power supply 380V (± 10%)

10.Relative error of returning to zero ± 0.1%

11. Dimensions 970mm × 450mm × 1350mm

12. The relative resolution of the test machine force value indicating device is 0.5%

13.The weight of the whole machine is 400Kg

14. Zero drift ≤ ± 0.1%
